Antennas

Microdis Electronics is rapidly expanding the variety of wireless products, and supported applications, where one of the key factors are antennas. Our portfolio consists of carefully selected, reliable and high quality antennas, fulfilling all demands of the modern wireless world.



We supply the most typical shapes widely used in such applications as AVL/fleet management, security or telematics, as well as more specific products, up to the customized solutions. We offer RoHS compliant antennas, manufactured according the ISO/TS 16949:2002 standards.



Wide portfolio of technologies, shapes and mounting options, makes it easy to find the product exactly fits into the application. The general selection is :

  • Active antennas - with built in LNA, to compensate the losses of the cable
  • Passive antennas - with or without the cable
  • PCB, OEM and Patch antennas - to be integrated by the customer

The most typical GPS/Galileo and Glonass antennas :

  • magnetic - mounted on any metal surface, some models are equipped with the adhesive set to be used in case of no metal around

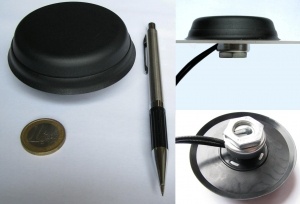

  • body mount - to be mounted in the hole with the nut
  • adhesive - to be mounted on any surface as dash board or windscreen
  • OEM modules - to be built into the customer application

The most typical GSM/UMTS antennas (dual, tipple or quad band, UMTS):

  • magnetic - mounted on any metal surface
  • body mount - to be mounted in the hole with the nut
  • adhesive - square, round or strip
  • rod - telematics antennas to be mounted directly to GSM/GPRS terminals
  • wall mount
  • OEM antennas - OEM antennas on PCB

The most popular multistandard antennas :

  • GPS/Galileo and GSM/UMTS - two outputs
  • GPS/Galileo and GSM/UMTS, Bluetooth - two outputs
  • GPS/Galileo and GSM/UMTS, Bluetooth and WiFi - three outputs
  • GSM/UMTS and Bluetooth two outputs
  • GSM/UMTS, Bluetooth and Tetra - two outputs

We are pleased to offer cable length, and connector type according the customer requirements.
The most typical cable lengths are :

  • 2.5 or 3.0 meters - for GSM, passive antennas
  • 3.0 or 5.0 meters - for GPS active antennas
  • 10-15 centimeters - for GPS and GSM OEM modules

The most typical connectors are :

  • GPS : SMA male, MCX male, SMB male
  • GSM : SMA male, FME female, SMB female, MMCX male angle
  • GSM OEM modules : MMCX male angle, GSC female angle

More details regarding passive, patch antennas can be found in Maxtena section. Our engineers support customers to tune the demanding designs with passive antennas, and make time to market short.





 ME410B GPS antenna  ME431MP GPS antenna



ME500L, ME500 GSM antenna  ME510, ME510F GSM antenna



ME420 GPS/GSM antenna    ME660B, ME664B GPS/GSM, GSM antenna



ME640B 3 standard antenna   ME320M, ME330M, ME340M



ME010, ME020, ME030, ME040ME301M GSM antennaME200GP, ME200GPW

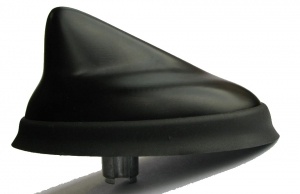

ME120BF, ME120B   ME860B shark antenna



Antennas are very important part of any wireless system, often tailored to the application. We have the right partners to offer such customized solutions, do not hesitate to contact our specialists : marketing@microdis.net



Our customers, together with antennas, usually order:



GPS modules



GSM modules



accessories (connectors, adapters)









In case of technical or application questions, our international team of application engineers will be pleased to support You under the following e-mail address:



marketing@microdis.net





Broad range of services offered by Microdis are available by our sales offices across Eastern Europe.
